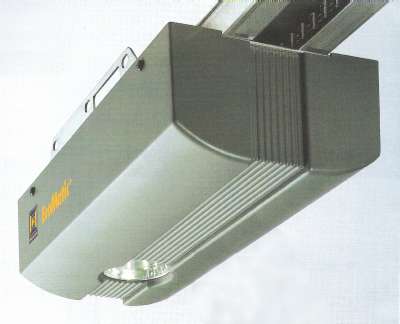

Product: Hormann Promatic

Back to comparison page  :  Example of installed unit with side hinge converter  :   Example of installed Promatic  :  Download Brochure  :  Place an order

Product summary:

An extremely quiet super-smooth operator, so a good choice if you have a room above your garage.  Excellent build quality, electronic diagnostics and good for single width retractable, sectional or side hinge doors in good working order. It has a soft-start / soft-stop feature and intelligent cut-out for your safety.

The Promatic is totally maintenance free and comes with brackets suitable for mounting to standard retractable doors as well as sectional doors.  Installation is very easy with the boom being pre-tensioned (no boom assembly required) and then mounted in place prior to the motor being fitted; this keeps the weight you have to lift to a minimum.

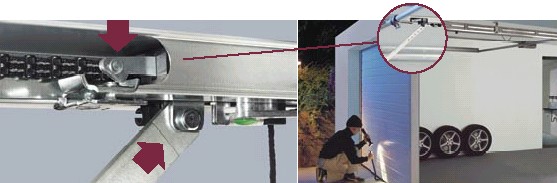

The one-piece toothed belt drive boom has a patent automatic latch for additional security and is available in different lengths to suit taller doors - see table below.

One HS2 and one HSE2 key-fob remote control is supplied.

Specifications:

Operator:

Hormann Promatic

Motor pulling force:

650N (65Kg approx)

Motor type:

DC

Drive mechanism:

Toothed belt

Travel rate:

140mm per second

Lifting Capacity:

Variable to 65 Kg's

Headroom clearance required:

30mm

Overall assembly length & travel:
    Short boom-
    Medium boom -
    Long boom -


3200mm & 2475mm
3450mm & 2725mm
4215mm & 3400mm

Force adjustments:

Automatic up and down

Soft-start / soft-stop feature:

Yes - electronically controlled

Lighting:
    Wattage -
    Light delay time -


1 x 40W (bulb supplied)
3 minutes - adjustable

Safety/emergency:
    Down cycle: safety reverse -
    Up cycle: safety stop -
    Automatic trolley reconnect -


Yes
Yes
Yes - via release button

Remote controls:
    Frequency -
    Number supplied in kit -


    Coding system -

    Operating range -
    Dimensions -


868.3Mhz
Two: HS4 (four button) &
         HSE2 (two button keyfob)
Supplied with clip case
Randomly selected code on installation (1 trillion codes)
40m (open field)
HS2:110mm x 37mm x 13mm
HSE2: 60mm x 25mm x 13mm

Wall switch:

None supplied but a simple door bell switch can be wired in

Warranty:

5 years - motor
1 year - remotes

Electrical:
    Voltage -
    Wattage -
    Standby power consumption -


230-240VAC, 50Hz
250W
4W

Construction:
    Motor -
    Rail (boom) -


Polycarbonate case
Steel

Which boom for your door?

Short boom is suitable for:
Retractable doors up to 2500mm high
Sectional doors less than 10' wide - Z application up to 2125mm high
Sectional doors over 10' wide - N application up to 2250mm high
Sectional doors over 10' wide with low headroom gear - L application up to 2125mm high

Medium boom is suitable for:
Retractable doors up to 2750mm high
Sectional doors less than 10' wide - Z application up to 2375mm high
Sectional doors over 10' wide - N application up to 2500mm high
Sectional doors over 10' wide with low headroom gear - L application up to 2375mm high

Long boom is suitable for:
Sectional doors with Z, N & L applications (standard and low headroom gear) up to 3000mm high

Prices:

Hormann Promatic with short boom:  £287.00 incl. VAT - Free delivery
Hormann Promatic with medium boom:  £307.00 incl. VAT - Free delivery
Hormann Promatic with long boom:  £393.00 incl. VAT - Free delivery

Supplied kit Includes:

Motor
Belt drive pre-tensioned boom suitable for sectional or retractable doors
Remote control x 2 as detailed above
Bracket and linkage suitable for attachment to sectional or retractable door
