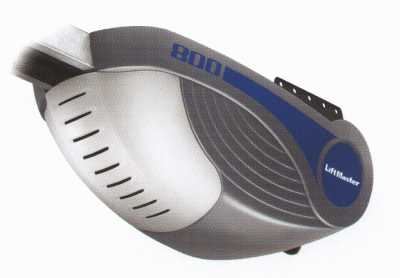

Product: Lift-Master DC LM800

Links: Back to comparison page  :  Example of installed unit  :  Download brochure :  Place an order

Product summary:

A quiet operator with DC motor supplied with belt drive mechanism.  Suitable for all sizes of retractable doors with soft start soft stop feature and automatic close timer.  Excellent reputation for quality.  Sleek and sporty look.

Specifications:

Operator:

Lift-Master DC LM800-433GB

Motor pulling force:

80Kg

Motor type:

DC

Drive mechanism:

Belt

Travel rate:

160mm/s

Installed length:

3.3m

Headroom clearance required:

40mm

Force adjustments:

Independent up and down
0-80Kgs

Soft-start / soft-stop feature:

Yes

Lighting:
    Wattage -
    Light delay time -


1 x 40W
3 minutes

Safety/emergency:
    Down cycle: safety reverse -
    Up cycle: safety stop -
    Automatic trolley reconnect -


Yes
Yes
Yes

Remote controls:
    Frequency -
    Number supplied in kit -
    Coding system -
    Operating range -


433Mhz
One (key fob 'mini')
Smart receiver 3.5 billion codes
45m (open field)

Wall switch:
    Number supplied in kit -


    Illuminated -


One - with lock feature, operator light switch and door open controls
Yes

Warranty:

2 years - full
5 years - motor

Electrical:
    Voltage -


230-240VAC, 50Hz

Construction:
    Chassis & Rail -
    Trolley -


Plastic / Steel
Plastic

Cost:

Belt drive £283.00 incl. VAT - Free delivery

Supplied kit Includes:

Motor
Rail suitable for 2.3m (7½ft) high retractable door
Remote control as detailed above
Wall mounted multi function panel as detailed above
Bracket and linkage suitable for attachment to retractable door
