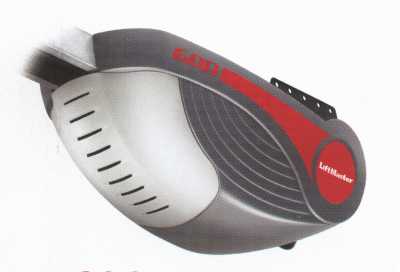

Product: Lift-Master DC LM600

Links: Back to comparison page  :  Example of installed unit  :  Download brochure :  Place an order

Product summary:

A quiet operator with DC motor supplied with belt drive mechanism.  Suitable for single width retractable doors with soft start soft stop feature.  Excellent reputation for quality.  Sleek and sporty look.

Specifications:

Operator:

Lift-Master DC LM600-433GB

Motor pulling force:

60Kg

Motor type:

DC

Drive mechanism:

Belt

Travel rate:

160mm/s

Installed length:

3.3m

Headroom clearance required:

40mm

Force adjustments:

Independent up and down
0-60Kg

Soft-start / soft-stop feature:

Yes

Lighting:
    Wattage -
    Light delay time -


1 x 40W
3 minutes

Safety/emergency:
    Down cycle: safety reverse -
    Up cycle: safety stop -
    Automatic trolley reconnect -


Yes
Yes
Yes

Remote controls:
    Frequency -
    Number supplied in kit -
    Coding system -
    Operating range -


433Mhz
One (key fob 'mini')
Smart receiver 3.5 billion codes
45m (open field)

Wall switch:
    Number supplied in kit -
    Illuminated -


One
Yes

Warranty:

2 years - full
3 years - motor

Electrical:
    Voltage -


230-240VAC, 50Hz

Construction:
    Chassis & Rail -
    Trolley -


Plastic / Steel
Plastic

Cost:

Belt drive £272.00 incl. VAT - Free delivery

Supplied kit Includes:

Motor
Rail suitable for 2.3m (7½ft) high retractable door
Remote control as detailed above
Wall mounted switch as detailed above
Bracket and linkage suitable for attachment to retractable door
